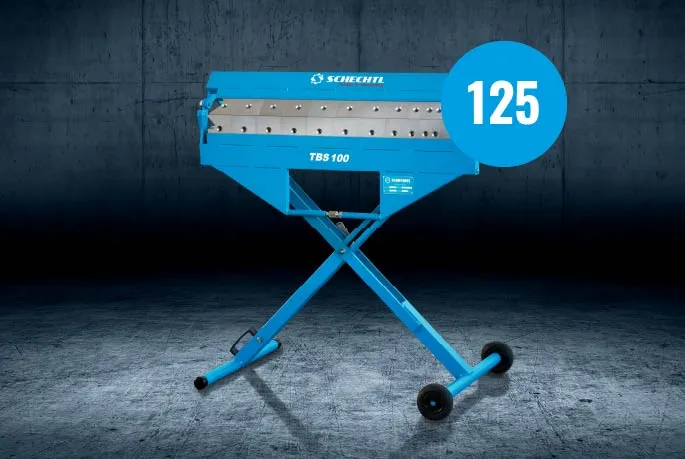

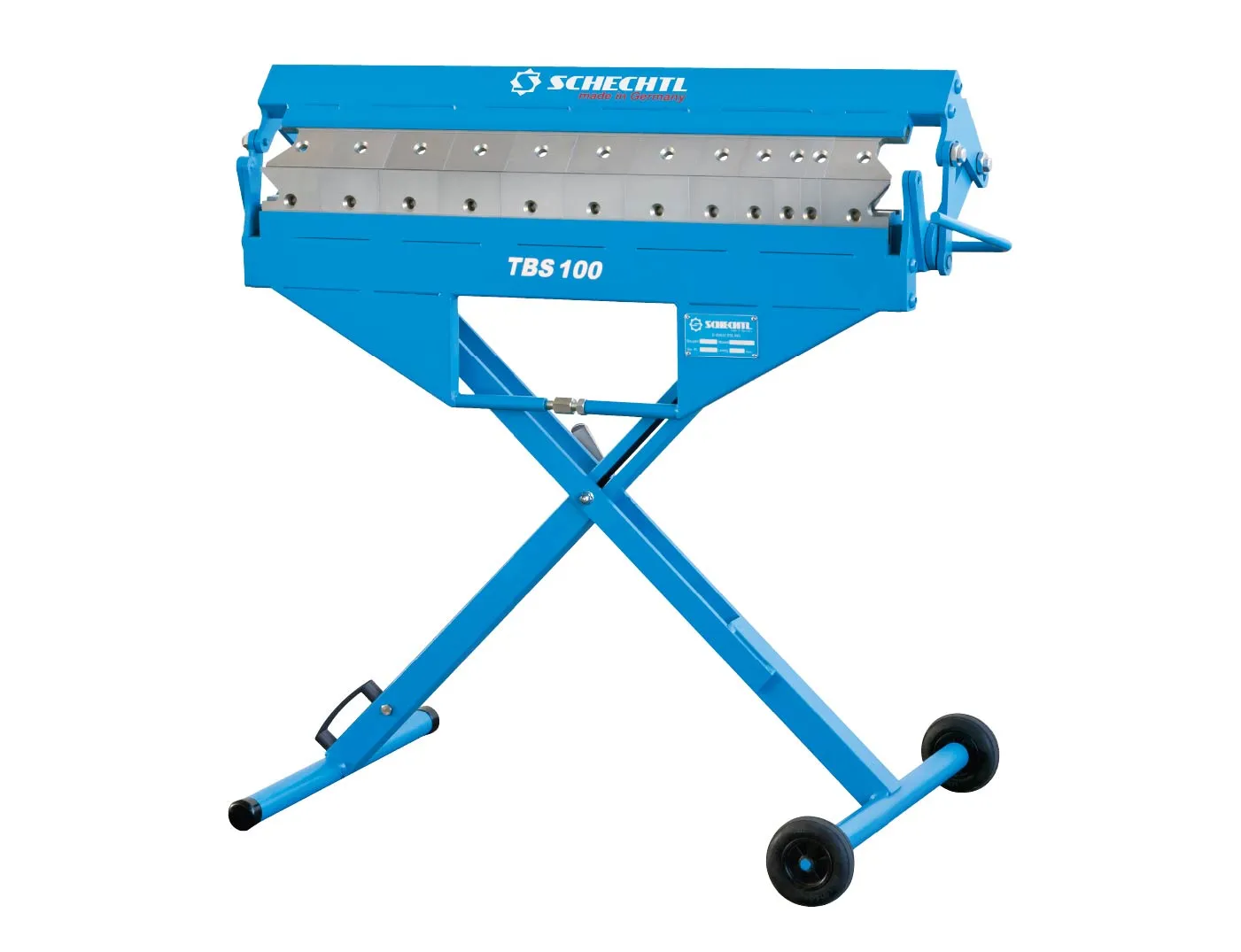

Schechtl TBS Mobile Swivel Bending Machine
Maneuverable and mobile. The Schechtl TBS is the smallest in Schechtl's manual segmented bending machine line, but it's a giant when it comes to flexibility on the job site. Its compact dimensions and light weight allow you to move the TBS around easily on the job site – between floors, on scaffolding and in small areas. And if you want, the TBS can be installed on a workbench or in a construction vehicle.
Benefits:

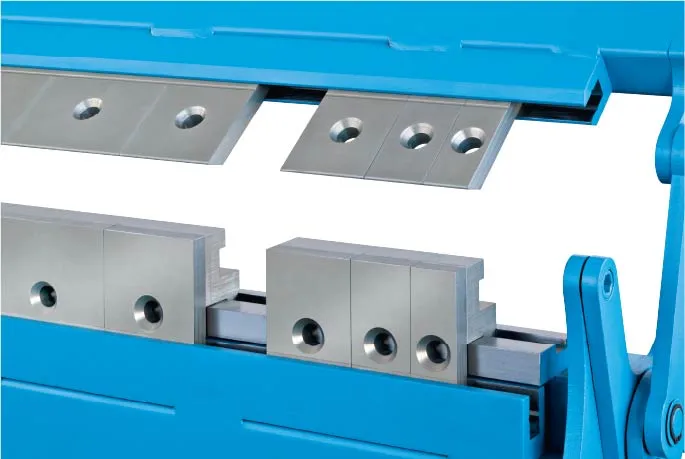

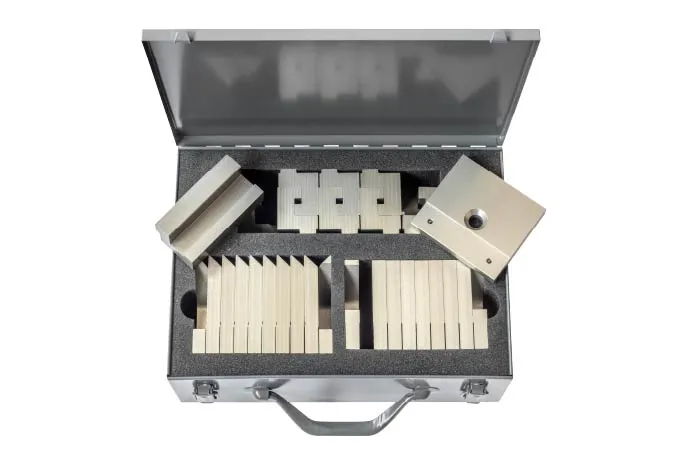

- Time-saving: Segment inserts can be combined in seconds without screws and tools
- Lightweight enough for 1-person operation. Can be carried by one person.
- Durable steel construction
- Folding x-shaped support stand with rollers and handle makes for easy set-up and moving
- Easy installation on any workbench or in a van
| Technical Data | TBS | 100 | 125 | |
| Working Length | inch | 39" | 49" | |
| Output | Steel | inch | 24g | 24g |
| Aluminum | inch | 0.040" | 0.040" | |
| Stainless Steel | inch | 26g | 26g | |
| Copper | inch | 16oz | 16oz | |
| Zinc | inch | 1mm | 1mm | |
| Clamping Beams | Opening Height | inch | 1.77" | 1.77" |
| Dimensions | Length | inch | 48.6" | 53.9" |
| Depth (machine only) | inch | 27.5" | 27.5" | |
| Overall Height | inch | 44.6" | 45.5" | |
| Weight | Weight | Pounds | 185 | 251 |
Add-ons
Optimize your jobsite operations with X-shaped support stand, stand bases and a roller shear for a precise cut.

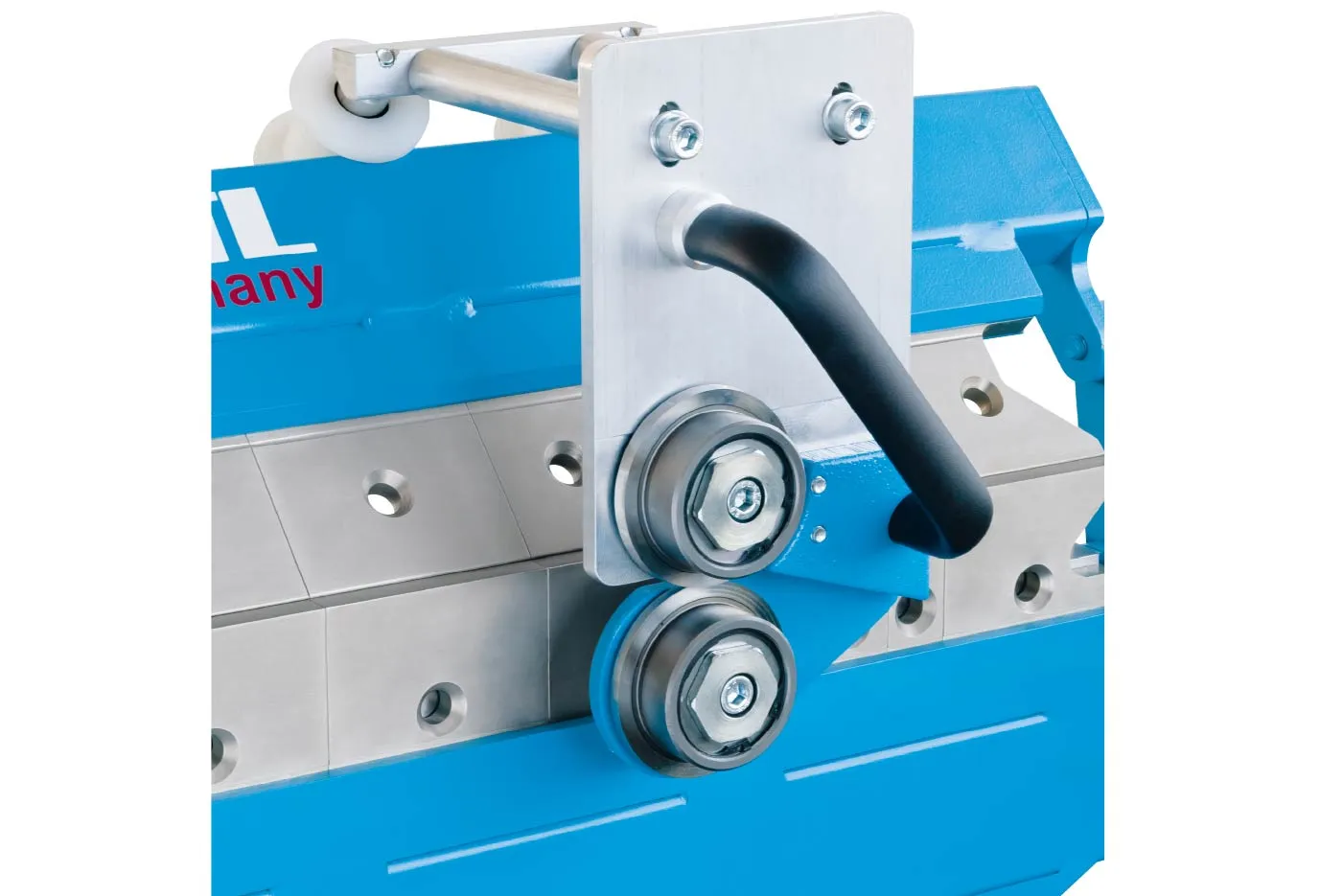

- The simple and space-saving technology of the roller shear
allows you to cut the sheets directly at the swivel bending machine - Cutting performance 0.80 mm steel
