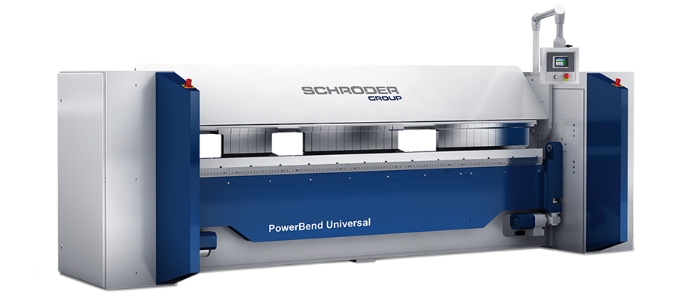

Schroeder Powerbend Universal

Schroeder PowerBend Universal name speaks for itself: This folding machine is designed to meet the demands in a wide range of applications. Its flexibility through applications up to 4 mm steel is the result of decades of experience in industrial sheet metal folding. A perfect balance between technology and performance. It was engineered using state of the art tools and finite element analysis.The Nano Touch software makes it the perfect machine for a wide array of production requirements. The control system is easy for anyone to program profiles and parts for quick production changes.

CONTACT US

The PowerBend Universal offers you a lot of possibilities – you decide what level of technology fits your individual requirements. The following are some additional features depending on your fabricating needs. The “Power-Package” a reinforced drive system, increasing the capacity on the PowerBend Universal to 5 mm mild steel for even more bending power. CNC folding beam adjustment, manual or CNC crowning, and speed enhancement upgrades. A wide range of back gauge options for optimal handing of your job needs. Also, tool options that are flexible to minimize set up times and maximize capabilities.

Benefits

  • Semi-automatic and fully automatic of one side
  • Increase productivity with up and down folding
  • Control remote maintenance
  • User-friendly visual programming on touchscreen monitor
POWERBEND UNIVERSAL
MODELWORKING LENGTHSHEET THICKNESS MILD STEELMACHINE LENGTHMACHINE WIDTHMACHINE HEIGHT
mm/inchmm/inchmm/inchmm/inchmm/inch
2,000x4.02,040/80.314/0.1573,814/150.161,694/66.691,510/59.4
2,500x4.02,540/1004/0.1574,314/169.81,694/66.691,510/59.4
3,200x3.03,240/127.53/0.1185,014/197.41,694/66.691,510/59.4
4,000x2.54,040/159.02.5/0.0985,814/228.91,694/66.691,150/59.4
CLAMPING BEAM
MODELGEOMETRYSTROKEDRIVE POWERSPEED
DEGREEMM/INCHKWMM/S
2,000x4.048° (180°)350/13.783/5.520(46) (0.787 in)
2,500x4.048° (180°)350/13.783/5.520(46) (0.787 in)
3,200x.3.048° (180°)350/13.783/5.520(46) (0.787 in)
4,000x2.548° (180°)350/13.783/5.520(46) (0.787 in)
FOLDING BEAM
MODELDRIVE POWERSPEEDFOLDING BEAM ADJUSTMENT
KW°/SMM
2,000×4.02 x 2.26680
2,500×4.02 x 2.26680
3,200×3.02 x 2.26680
4,000×2.52 x 2.26680
