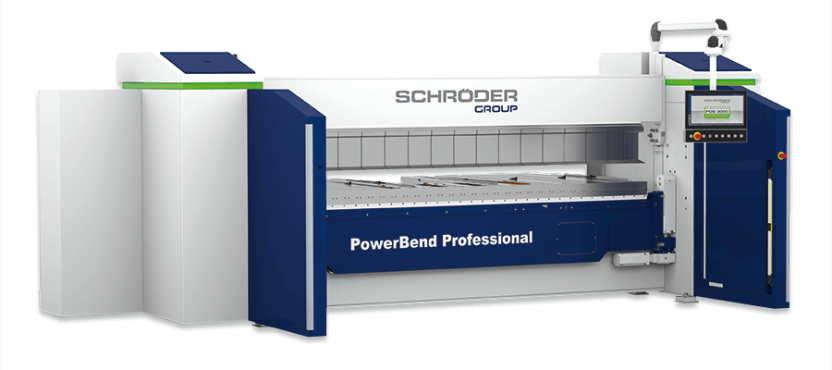

Schroeder PowerBend Professional

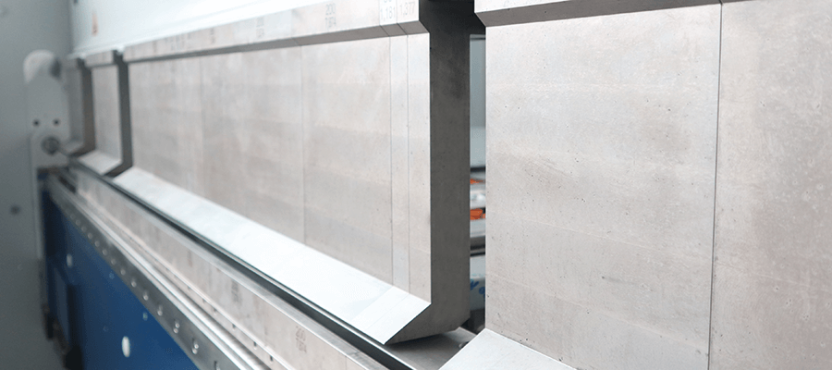

The NEW PowerBend Professional is the next generation to the incredibly successful PowerBend series of thin gauge sheet metal folders. Thanks to the superior drive technology, advanced electronic controls, CNC crowning, and segmented tooling options, the PowerBend Professional possesses the robustness, reliability, and accuracy to handle complex geometries and difficult bending requirements with ease. At the same time the PowerBend Professional offers the flexibility your company needs to produce short runs and prototypes. With the hydraulic tool clamping device and the optional rotating clamping beam, set up times can be drastically reduced. The result is a considerable increase in productivity, and a significant reduction in labor.

Benefits

  • Semi-automatic and fully automatic of one side
  • Increase productivity with up and down folding
  • Control remote maintenance
  • User-friendly visual programming on touchscreen monitor
  • Extremely rigid machine body for highest precision and performance
  • Fast changeover with rotating clamping beam
  • Hydraulic tool clamping
  • Flexible gauging and table options
  • Optional pneumatic pop up precise lateral gauges

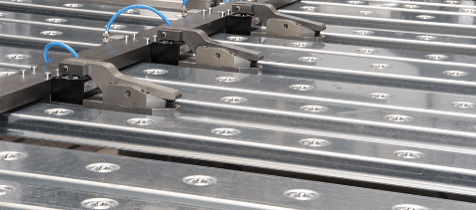

  • Suction gauge for flexible and reliable pneumatic fixation

Specifications

SpecificationPBP3PBP4
Length3240mm (127.5")4040mm (159")
Max Capacity Tool Height250mm (9.84")250mm (9.84")
Stroke & Open500mm (19.68")500mm (19.68")
Material Thickness
Mild Steel3mm (0.118"; 11ga)2.67mm (0.105"; 12ga)
Stainless Steel2mm (0.079"; 14ga)1.5mm (0.059"; 16ga)
Aluminum4mm (0.157")3.175mm (0.125")
