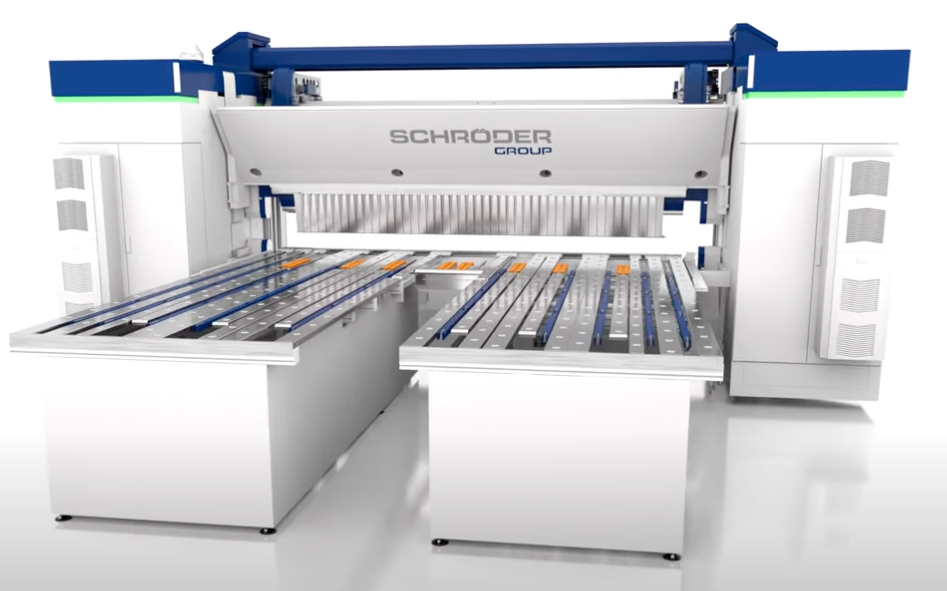

Schroeder EVO DuoBend
Precision. Efficiency. Productivity Redefined.
Designed to redefine precision and efficiency in sheet metal bending, the EVO DuoBend seamlessly combines the power of two folding beams offering unparalleled versatility and accuracy. The top folding beam performs down bends, while the bottom folding beam handles up bends.
This unique capability adds an incredible amount of flexibility to the part profiles that can be processed, and eliminates the limitations found in single-beam folding systems. Parts once impossible to process on a folder can now be folded with ease.
- Eliminates restrictions of single-beam bi-directional folding
- Bottom folding beam handles upbends
- Top folding beam performs downbends
- Tough enough for continuous operation in an industrial environment
- Advanced control system and user-friendly interface
Whether you are working with thin or thick sheets, mild steel, stainless steel, or aluminum, the DuoBend is engineered for precise, repeatable bends, reducing waste and increasing production velocity.
Benefits
- Boost bending efficiency with two bending beams
- Designed for sheets up to 5 mm thick (6 guage)
- Remote maintenance
- User-friendly visual programming on touchscreen monitor
- Large profiles can be produced in a fraction of the time
- Single operator
- Protection via light curtain controlled by safety-PLC for operation from the rear
- CAD model importation
- Industry 4.0 is fully supported
Specifications
3240 mm x 5 (127.5" x 0.197")
4040 mm x 4 mm (159" x 0.157")
Clamping beam stroke: 1090 mm (42.9")
Folding beam bending speed 150°/second
| Schroeder EVO DuoBend Tech Specs | ||
| Type | Working length | Sheet thickness 400 N/mm2 |
| [mm] | [mm] | [mm] |
| 3200×5,0 | 3240 | 5,00 |
| 4000×4,0 | 4040 | 4,00 |
